Electro Galvanized 22 Welded Wire Mesh Panel 2m1m for Construction

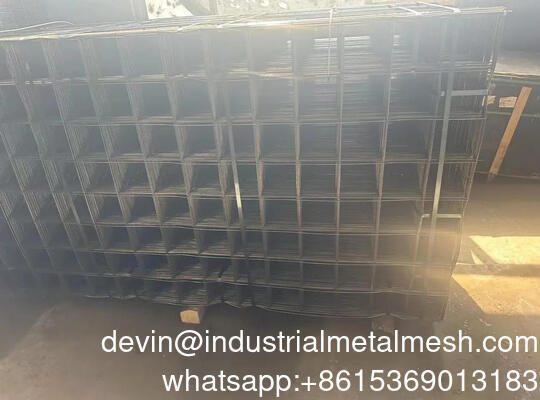

Gambar besar : Electro Galvanized 2*2 Welded Wire Mesh Panel 2m*1m for Construction

Detail produk:

Tempat asal:	Cina
Nama merek:	QiJie
Sertifikasi:	ISO9001:2008, SGS, CE
Nomor model:	01WWM

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	50 gulungan
Harga:	USD9.90-USD45.90
Kemasan rincian:	Film plastik atau kertas tahan air
Waktu pengiriman:	10-25 hari
Syarat-syarat pembayaran:	TT, LC,
Menyediakan kemampuan:	1000 gulungan/per hari

Kontak

Detil Deskripsi produk

Bahan:	Kawat baja karbon	Pembukaan Jaring:	12×12, 20×20, 25×25, 12×25mm
Diameter Kawat:	0,4 mm - 1,5 mm	Lebar Gulungan:	0,4m,0,5m,0,6m,0,8m, 1,0m, 1,25m, 1,5m, 2,0m
Panjang Gulungan:	15M,30M,50M dll	Perawatan Permukaan:	Galvanis yang dicelup panas atau galvanis listrik
Nomor model:	xx-01001	Aplikasi::	Pagar Jaring
E-mail:	devin@industrialmetalmesh.com	ada apa:	+8615369013183
Menyoroti:	electro galvanized welded wire mesh , 2x2 welded mesh panel , construction wire mesh panel

Electro Galvanized 2*2 Welded Wire Mesh Panel 2m*1m for Construction

Product Description:

Welded Wire Mesh Panel
Welded wire mesh panel also called welded wire fabric is a steel reinforcement material in concrete. The mesh is used for replacing the traditional "cut & bend" and placing of steel thermo-mechanical treated bars. The mesh is an electric fusion welded prefabricated reinforcement consisting of a series of parallel longitudinal wires with accurate spacing welded to cross wires at the required spacing. Machines are used to produce the mesh with precise dimensional control. The product results in considerable savings in time, labour and money.
Welded wire mesh panels types
black wire welded wire mesh panel
Hot dipped galvanised before welded wire mesh panel
Hot dipped galvanised after welded wire mesh panel
Electro galvanised before welded wire mesh panel
Electro galvanised after welded wire mesh panel
PVC coated welded wire mesh panel (galvanized inner wire /black inner wire)
Powder coated welded wire mesh panel
High zinc coating welded wire mesh panel
Galfan welded wire mesh panel

Welded Types

specification:

wire diameter: 22guage, 20guage, 0.7mm, 1mm, 1.2mm, 1.5mm, 2mm
length:30m,20m,2.4m,2m,or as per you request
width: 1m,48",24" 3',4',5',
Mesh Opening Size:1/2", 1/4", 1", 3/8", 1 1/2", 2", 3/4", 1"*2" etc
Roll Size: 3′*100′, 4′*100′. 3FT*100FT, 4FT*100FT, 4FT*50FT
Surface treatment: Elec-galvanized, hot-dip galvanized, pvc coated, powder coating etc.
Feature: The structure of this kind of wire mesh is strong, lasting and rust-resistant. Galvanized welded wire mesh is galvanized after welding.
Application: They are used in industry and agriculture building, transportation and mining for all such purposes as poultry houses, egg baskets, runway enclosures, draining rack, fruit drying screen, fence.

Electro Galvanized 2*2 Welded Wire Mesh Panel 2m*1m for Construction 2

Wire Diameter	Mesh		Width
Wire Diameter	inch	mm	Width
2.0mm ~ 3.2mm	1"	25.40	0.914m ~ 1.83m
2.0mm ~ 4.5mm	2"	50.80	0.914m ~ 2.75m
2.0mm ~ 6.0mm	3"	70.20	0.914m ~ 2.75m
2.0mm ~ 6.0mm	4"	101.6	0.914m ~ 2.75m
2.0mm ~ 6.0mm	5"	127.0	0.914m ~ 2.75m
2.0mm ~ 6.0mm	6"	152.4	0.914m ~ 2.75m
2.0mm ~ 6.0mm	7"	177.8	0.914m ~ 2.75m
2.0mm ~ 6.0mm	8"	203.2	0.914m ~ 2.75m

Product Characters of welded wire mesh :

1 . Excellent heat resistant and high intensity .

2 . High strength and strong integration .

3 . Flat and smooth surface combined with firm structure .

4 . Perfect Anti - Rust Property .

5 . Stay Holistiv even cut into fragmented parts .

6 . Long Using Life

7 . Hot dipped galvanized after welded. Not black welded point, more zinc coated ensure it has better anti-rust and last longer. But it also lead to higher cost.

Product Application of welded wire mesh:

It is very popular in breeding industry: Can be made into floor heating, contruction use, various animal cages or fences for breeding with its excellent anti-corrosion property. The zinc coating offers a kind of decorative outlook with its flat surface.
With first-class anti-corrosion property, it is widely used in mine sieving industries as sieving screen. The low carbon steel wire for making of hot-dipped welded wire mesh offers flexibility that can be made in many further fabrication applications.

Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
