China Factory Galvanized Welded Wire Mesh Fencing Trellis for Animal Cages

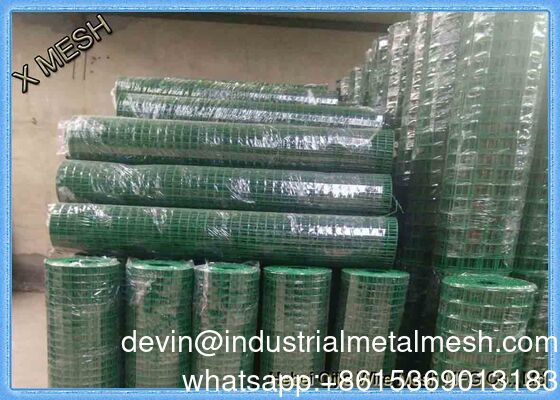

Gambar besar : China Factory Galvanized Welded Wire Mesh Fencing Trellis for Animal Cages

Detail produk:

Tempat asal:	Cina
Nama merek:	Qijie
Sertifikasi:	SGS
Nomor model:	QJ-WM

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	10Rolls
Kemasan rincian:	palet
Waktu pengiriman:	15-18Hari
Syarat-syarat pembayaran:	TT
Menyediakan kemampuan:	1000 buah

Kontak

Detil Deskripsi produk

Bentuk lubang:	Persegi, persegi panjang	Berat per lembar:	Bervariasi Tergantung Diameter Kawat Dan Ukuran Lembaran
Bukaan:	50*75mm Atau Sesuai Permintaan Anda, 1/4	Kepatuhan standar:	Standar ASTM, ISO, BS
Ketebalan:	1.3mm	Perawatan permukaan:	Dilapisi pvc
Ukuran Gulungan:	24	Warna:	Perak, Hijau, Hitam (untuk Dilapisi PVC)
Menyoroti:	galvanized welded wire mesh fencing , welded wire mesh for animal cages , galvanized wire mesh trellis

China Factory Galvanized Welded Wire Mesh Fencing Trellis for Animal Cages

Welded wire mesh is one popular materials in concrete, construction and industry. It is made of low carbon steel wire, PVC coated wire and stainless steel wire, after welding or before welding and surface zinc treating .The welded wire mesh are the most excellent anti-corrosion resistance among all the steel wire mesh products, it is also the most versatile wire mesh due to its wide application in different fields.

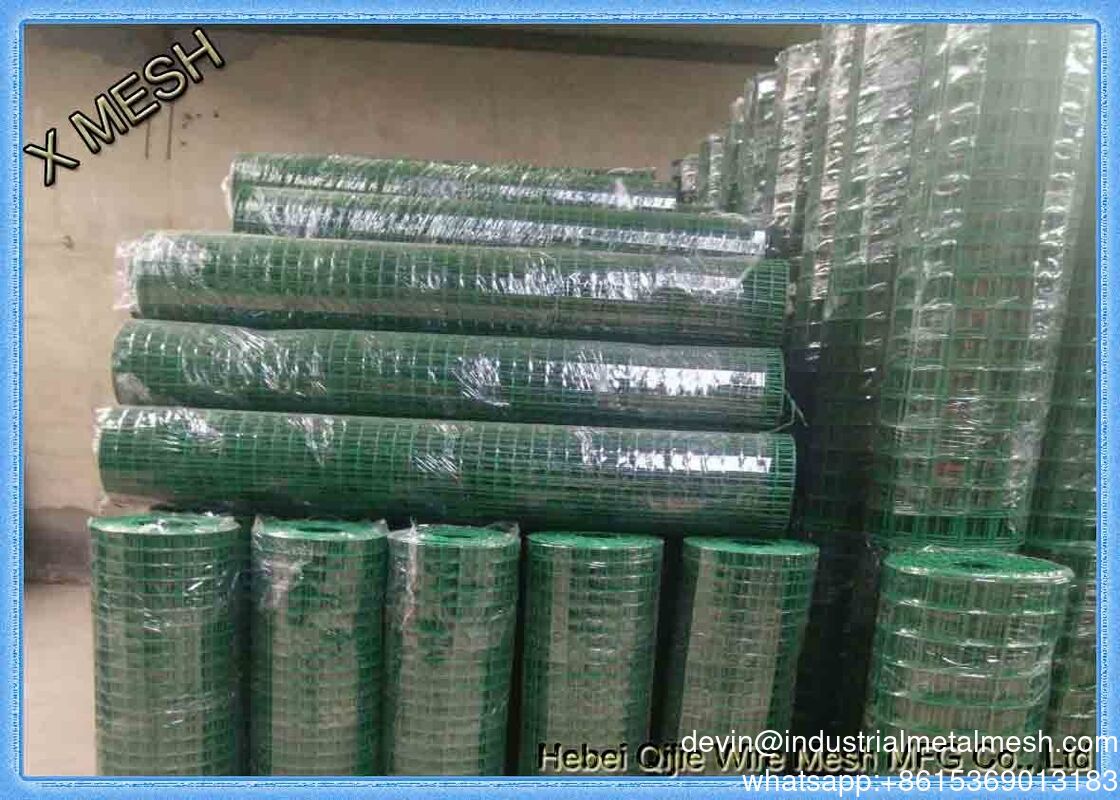

China Factory Galvanized Welded Wire Mesh Fencing Trellis for Animal Cages 0

Specification
Opening		Wire Diameter	Width 0.4-2m Length 5-50m	electric galvanized before welded, electric galvanized after welded, hot-dipped galvanized before welded, hot-dipped galvanized after welded, PVC coated, Stainless steel wire
Inch	Metric Unit	Wire Diameter
1/4"x1/4"	6.4mmx6.4mm	BWG24-22
3/8"x3/8"	10.6mmx10.6mm	BWG22-19
1/2"x1/2"	12.7mmx12.7mm	BWG23-16
5/8"x5/8"	16mmx16mm	BWG21-18
3/4"x3/4"	19.1mmx19.1mm	BWG21-16
1"x1/2"	25.4mmx25.4mm	BWG21-16
1-1/2"x1 1/2"	38mmx38mm	BWG19-14
1"x2"	25.4mmx12.7mm	BWG16-14
2"x2"	50.8mmx50.8mm	BWG15-12
2"x4"	101.6mmx101.6mm	BWG15-12
4"x4"	101.6mmx152.4mm	BWG15-12
4"x6"	101.6mmx152.4mm	BWG15-12
6"x6"	152.4mmx152.4mm	BWG15-12
6"x8"	15.4mmx203.2mm	BWG14-12
Note:Special specification can be made according to customers requires

pvc coated welded wire mesh advantages
1. The grid structure is concise, beautiful and practical;
2. It is easy to transport, and the installation is not restricted by terrain fluctuation;
3. Especially adaptable to mountains, slopes and multi-curved areas;
4. The price is medium to low, suitable for large areas.

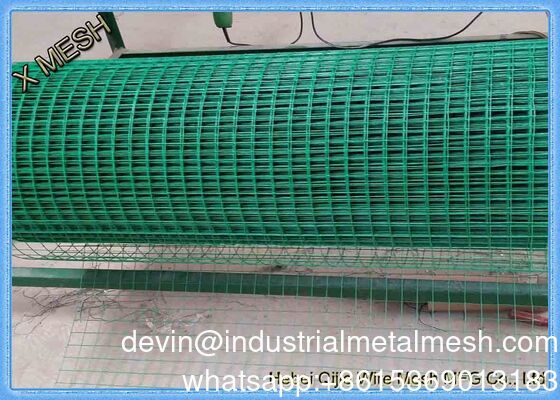

China Factory Galvanized Welded Wire Mesh Fencing Trellis for Animal Cages 1

Tolerances on Mesh Dimensions
Mesh Dimensions(mm)	Tolerance(mm)
< 50	±2.0
≥50 to < 200	±3.0

Mesh Size and Wire Diameter
Mesh Size		Wire Diameter Before & After PVC Coat
mm	inch	BWG No.	Before Coated (mm)	After Coated (mm)
6.4	1/4	24-22	0.56-0.71	0.90-1.05
9.5	3/8	23-19	0.64-1.07	1.00-1.52
12.7	1/2	22-16	0.71-1.65	1.10-2.20
15.9	5/8	21-16	0.81-1.65	1.22-2.30
19.1	3/4	21-16	0.81-1.65	1.24-2.40
25.4 × 12.7	1 × 1/2	21-16	0.81-1.65	1.24-2.42
25.4	1	21-14	0.81-2.11	1.28-2.90
38.1	1 1/2	19-14	1.07-2.11	1.57-2.92
25.4 × 50.8	1 × 2	17-14	1.47-2.11	2.00-2.95
50.8	2	16-12	1.65-2.77	2.20-3.61

Welded Wire Mesh Roll Size
Mesh Inch	Width × Length
1/2	3 ft. × 50 ft.
1/2	4 ft. × 50 ft
1/2	5 ft. × 50 ft.
1/2	6 ft. × 50 ft.
3/4	3 ft. × 50 ft
3/4	4 ft. × 50 ft.
3/4	5 ft. × 50 ft
3/4	6 ft. × 50 ft.
1	3 ft. × 50 ft.
1	4 ft. × 50 ft.
1	5 ft. × 50 ft.
1	6 ft. × 50 ft.

Welded wire Mesh Panels Common Specification
Mesh		Wire Diameter
Expressed in Inches	Millimeters	Diameter	Millimeters
1" × 1"	25 mm × 25 mm	11 G - 14 G	2 mm - 3 mm
2" × 1"	50 mm × 25 mm	8 G - 14 G	2 mm - 4 mm
2" × 2"	50 mm × 50 mm	8 G - 14 G	2 mm - 4 mm
3" × 2"	75 mm × 50 mm	6 G - 14 G	2 mm - 5 mm
3" × 3"	75 mm × 75 mm	6 G - 14 G	2 mm - 5 mm
4" × 2"	100 mm × 50 mm	4 G - 14 G	2 mm - 6 mm
4" × 4"	100 mm × 100 mm	4 G - 14 G	2 mm - 6 mm
5" × 5"	125 mm × 125 mm	4 G - 14 G	2 mm - 6 mm
6" × 6"	150 mm × 150 mm	4 G - 14 G	2 mm - 6 mm
Note: Special specifications can be customized.

China Factory Galvanized Welded Wire Mesh Fencing Trellis for Animal Cages 2
The Types Of Welded Wire Mesh:
Welded wire mesh is made of high quality low carbon steel wire, PVC coated welded mesh, Galvanized welded mesh devides into hot dipped galvanized and electro galvanized.
Welded wire mesh rolls and Welded wire mesh panels.
The wire of the welded wire mesh is straight or wavy (also called Dutch wire). According to the shape of the mesh surface, it can be divided into: welded mesh sheet and welded mesh roll.Features of Welded Wire Mesh
Easily workable
Solid construction
Extremely versatile
Easy to install
Lightweight
Can have low resistance to wind loads
Easily cut to fit
Available in many styles and materials, such as stainless steel and alumiunum.
Applications:
Welded wire mesh is also called steel wire mesh, welded mesh, construction meh, square mesh, screen mesh.
Welded wire mesh is widely used in agriculture, construction, transportation, mining and other industries. Such as machine protective netting, animal and livestock fences, flower and tree fences, window guards, passage fences, poultry cages, egg baskets and home office food baskets, paper baskets and decorations. Mainly used for general building exterior walls, pouring concrete, high-rise residential buildings, etc. it plays an important structural role in the thermal insulation system.

Welded wire mesh fencing
Welded wire mesh backets
• Welded wire mesh architectural grilles
• Welded wire mesh grates
• Welded wire mesh racks
• Welded wire mesh aggregate screening
• Welded wire mesh test sieve cloth
• Welded wire mesh water screens
• Welded wire mesh guard screens
• Welded wire mesh detention and security
• Welded wire mesh machine guarding

PACKAGE & SHIPPING

Packaging steps:
Each piece put in on carton box, wood case, Plastics Packaging, pallet, etc.
Mode of shipping:
Shipping by air, sea or car.
By sea for batch goods;
Customs specifying freight forwarders or negotiable shipping methods.
