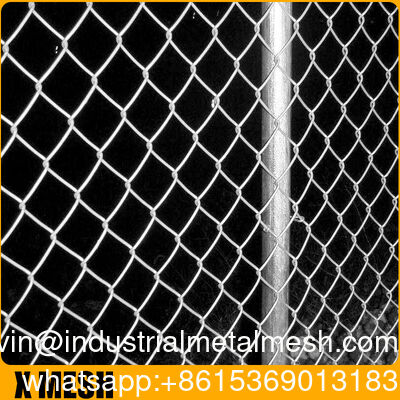

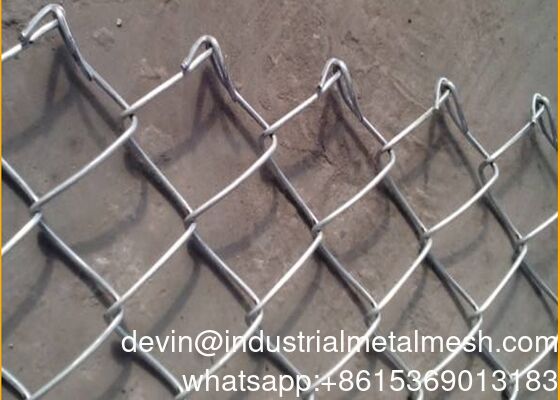

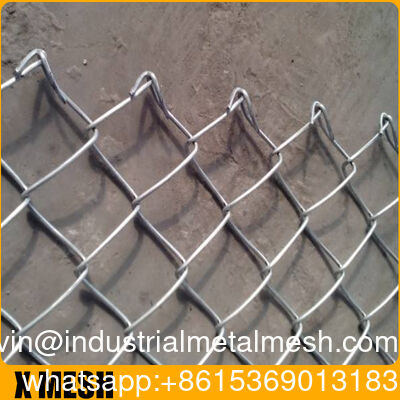

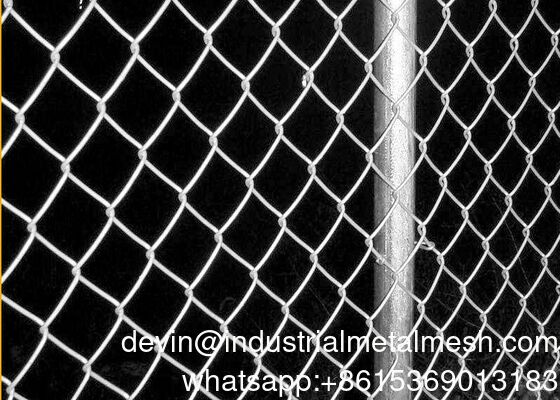

Hot ISO9001, SGS, BV Decorative Mesh Nigeria 8 Feet Tall Chain Link Fence Roll

Gambar besar : Hot ISO9001, SGS, BV Decorative Mesh Nigeria 8 Feet Tall Chain Link Fence Roll

Detail produk:

Tempat asal:	Hebei, Tiongkok
Nama merek:	XMESH
Sertifikasi:	SGS
Nomor model:	QJ-102

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	200 buah
Kemasan rincian:	dikemas longgar atau dengan palet
Waktu pengiriman:	15-25 hari
Syarat-syarat pembayaran:	TT, LC,
Menyediakan kemampuan:	1500 gulungan satu bulan

Kontak

Detil Deskripsi produk

Bahan:	Kawat baja berlapis PVC	Diameter kawat:	2,5 mm, 3,05 mm, 3,76 mm, 4,88 mm
Jala:	50x50 mm, 60x60 mm	Tinggi:	1,5 m, 1,8 m, 2,4 m
Panjang:	15.2 m / 50 kaki	Massa Seng:	60 g, 120 g
E-mail:	devin@industrialmetalmesh.com	WhatsApp:	+8615369013183
Menyoroti:	ISO9001 certified chain link fence , 8 feet tall decorative mesh fence , SGS approved chain link fabric

Hot ISO9001, SGS, BV Decorative Mesh Nigeria 8 Feet Tall Chain Link Fence Roll

Product descriptions

Chain link fence, also called Cyclone fences or diamond mesh fence, is made from steel wire fabrics. With variety of wire gauges and mesh size, chain link fence can be designed according to different applications. Moreover, it has the features of low cost,transparency, and easy installation. Chain link mesh rolls normally come with line wire and knuckled edges. Barbed edges are more popular and with higher security.

Inner Wire Material
1. Black wire: just black wire, without any surface finish.
2. Electro galvanzied, hot-dipped galvanzied
Two standard zinc coating for hot-dipped galvanzied:
1) normal zinc coating(50-60g/m2)
2) heavy zinc coating(260g/m2)
Tips: Hot-dipped galvanized has better corrosion resistance than electro galvanized, because the thickness of zinc coating is thicker.

drawing of chain link fence

drawing of chain link fence

Material	Galvanized Wire and Tube or Carbon Steel Wire or PVC Wire
Wire Diameter	2.50mm, 3mm, 3.5mm, 4mm, 4.5mm, 5.00mm
Welded Mesh Opening	40x40mm,50x50mm,60x60mm, 80x80mm, 100x100mm etc
Fence Frame Pipe	25mm O.D., 32mm O.D., 40mm O.D., 42mm O.D., 48mm O.D. etc
Dimensions	2.1x2.4m, 1.8x2.4m, 1.8x2.9m, 2.25x2.4m, 2.1x2.6m, 2.1x3.3m etc
Surface Treatment	Hot-dipped galvanized or electric galvanized

Profile	Wall Thickness	Surface Treatment	Length	Rain hat
Φ60 Φ75	1.50mm-5.20mm	Galvanized and Electrostatic polyester powder coated or hot dipped galvanized	On the basis of panel height	Metal

1. Gauge of wire is 'finish size' inclusive of vinyl coating in this instance;

2. Meets ASTM F 668-04, Class 1, thickness of polymer coating between 0.015 - 0.025 inch(0.38 - 0.64mm);

Loading of PVC coated Chain Link Fence

install of chain link fence

4' High x 250' Galvanized Chain Link Fence Packages Include:

250' - 4' High Galvanized Chain Link Fence Fabric
12 - 1-3/8" x 21' Galvanized Top Rails
20 - 1-5/8" x 6' Galvanized Line Posts
10 - 2-1/2" x 6'6" Galvanized Terminal Posts
20 - 1-5/8" x 1-3/8" Chain Link Loop Caps
10 - 2-1/2" Chain Link Post Caps
14 - 48" Galvanized Chain Link Tension Bars
42 - 2-1/2" Galvanized Tension Bands
14 - 2-1/2" Galvanized Brace Bands
14 - 1-3/8" Rail End Cups
56 - 5/16" x 1-1/4" Carriage Bolts/Hex Nuts
1 - 4' High x 5' Wide Galvanized Single Chain Link Swing Gate w/ Hinges and Latch
1 - 4' High x 12' Wide Galvanized Double Chain Link Swing Gate w/ Hinges and Drop Rod
2 - 1-5/8" Aluminum Pig Tail Tie Wire - Bag of 100

pvc coated chain link fence-001

galvanized chain link fence-001

galvanized chain link fence-002

galvanized chain link fence-003

galvanized chain link fence-004

galvanized chain link fence-005
