Falling Curing Stainless Steel Wire Cable Rope Mesh Net for Handrail

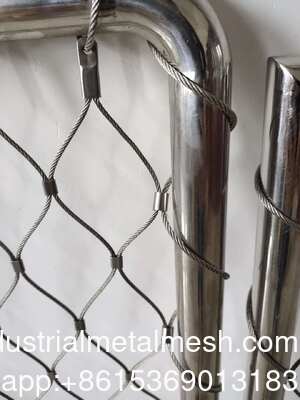

Gambar besar : Falling Curing Stainless Steel Wire Cable Rope Mesh Net for Handrail

Detail produk:

Tempat asal:	Hebei, Tiongkok
Nama merek:	QIJIE
Sertifikasi:	CE,SGS,ISO
Nomor model:	SW-004

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	10 meter persegi
Kemasan rincian:	kotak kayu
Waktu pengiriman:	10-15 hari kerja
Syarat-syarat pembayaran:	30% TT di muka, Saldo sebelum memuat
Menyediakan kemampuan:	3000 m2/bulan

Kontak

Detil Deskripsi produk

Bahan:	kawat baja tahan karat	Jenis:	Tali Jala, Jenis Ferrule atau Jenis Rajutan
Aplikasi:	Melindungi mesh	Gaya menenun:	Tenunan Polos
Teknik:	tenunan	Nomor model:	Jaring Tali Kawat Baja
Layanan Pemrosesan:	Menenun	bahan mentah:	Stainless Steel 304 316, Kawat Galvanis
Aksesoris:	Semua bisa disediakan	E-mail:	devin@industrialmetalmesh.com
ada apa:	+8615369013183
Menyoroti:	stainless steel wire rope mesh , falling curing cable net , handrail wire rope mesh

Falling Curing Stainless Steel Wire Cable Rope Mesh Net for Handrail

A premium fabric with strength and flexibility made up with a network of strands of stainless steel cables that are knotted and twisted. The construction is made up of stainless steel wire ropes parallel in pairs and mutually connected by crimped sleeves or weaving knots. When stretched, the net construction produces a spring force which varies from different opening degree and wire mesh rope diameter. Stainless Steel Rope Mesh is a vibrant and quality product with customized opening and various wire diameter (1.2 mm, 1.6 mm, 2 mm, 2.4 mm and 3.2 mm). All our meshes are made from either AISI 316 or 304 material group.

Stainless Steel Rope Mesh

Stainless steel rope mesh is made from high tensile stainless steel 304, 316, 304L and 316L. Stainless steel rope mesh can be divided into two kinds according to the combination method: stainless steel knotted rope mesh and stainless steel ferrule rope mesh. The former is combined by the ropes winded together. And the latter is combined by the ferrules which are made up from the same grade stainless steel.

Material: Stainless Steel 304, 304L, 316, 316L.

Wire diameter: 1.0 mm - 5.0 mm.

Construction of wire cable: 7 × 7, 7 × 19.

Weaving Types: Handwoven, Open type buckle, Closed type buckle.

Mesh opening sizes: 25-200 mm.

Mesh opening angles: 20°, 30°, 60°, 70°, 75°. Mesh aperture at 60° as standard opening.

Surface treatment: primary color or black oxide finish.

Connection: Ferrule or knotted.

Ferrule material: stainless steel, tinned copper, nickel plated copper.

Product Specifications

(Custom configurations available upon request.)

Material	Twisting high-strength steel wire, common materials include stainless steel wire, galvanized steel wire, etc.
Features	High strength and impact resistance, Flexibility, Corrosion resistance, Transparency
Application	Slope protection, Active protection, Passive protection, Building protection, Zoos and breeding farms, Sports facilities
Size	Customizable

Specification
Structure	Diameter(mm)	Aperture(mm)
7*7	1.0	10*10
7*7	1.2	15*15
7*7	1.2	20*20
7*7	1.5	25*25
77/719	2.0	3030, 5050
77/719	2.5	5050, 8080
77/719	3.0	5050, 8080,100*100
77/719	3.5	8080,100100, 150*150
77/719	4.0	100100, 150150, 200*200
Length: 1-100m Width:1-10m

Falling Curing Stainless Steel Wire Cable Rope Mesh Net for Handrail 0

Applications:
1. Steel Mesh Balustrade - bridge, stair, balcony, path
2. Cable Mesh - Excellent Solution to Safety
3. Safety Net - Structural Measure to Prevent Suicide
4. Helipad Safety Net - Modular Heliport Webbing
5. Cable Zoo Mesh - Solution to Enclosing Most Animals
6. Aviary Netting - Lightweight, Durable and Long Lasting
7. Green Facade - Cable System for Most Climbing Plants

Advantages

· Durable and Corrosion-Resistant: This stainless steel rope mesh is made from 7x19 stainless steel wire, ensuring a durable and long-lasting product that resists corrosion and withstands harsh environments.
· Customizable Size and Length: The product is available in various sizes and lengths, allowing customers to choose the perfect fit for their specific needs, from 30m to a fully customizable option.
· Versatile Applications: This stainless steel rope mesh is suitable for various applications, including building and construction, making it an ideal choice for customers who require a versatile product.
· Easy to Install: The rope mesh features a plain weave style and a square hole shape, making it easy to install and assemble, saving customers time and effort.
· Fast Delivery and Competitive Pricing: With a delivery time of 8-14 days and a minimum order quantity of 1 roll, customers can receive their product quickly and at a competitive price, making it an excellent value for money.

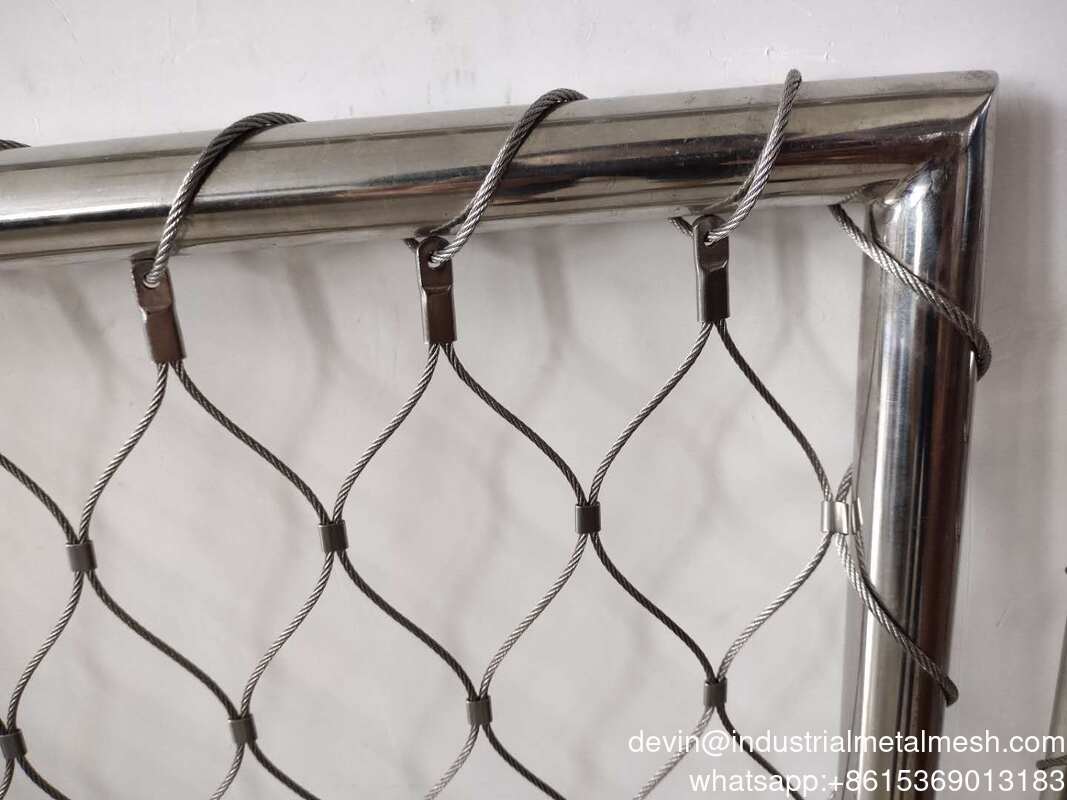

Falling Curing Stainless Steel Wire Cable Rope Mesh Net for Handrail 1

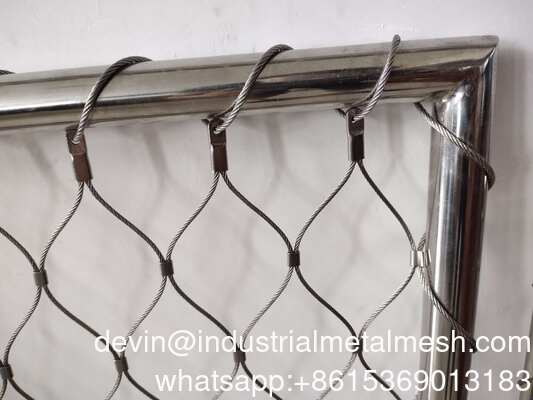

Falling Curing Stainless Steel Wire Cable Rope Mesh Net for Handrail 2
