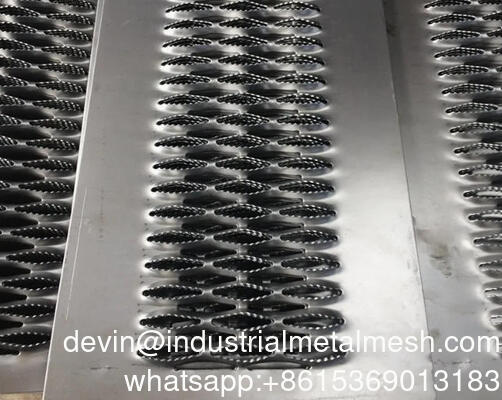

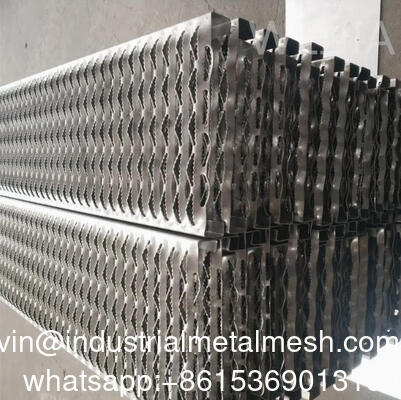

All Types Stainless Steel Perforated Metal Safety Grating

Gambar besar : All Types Stainless Steel Perforated Metal Safety Grating

Detail produk:

Tempat asal:	Hebei, Tiongkok
Nama merek:	QIJIE
Sertifikasi:	iso
Nomor model:	kisi penyangga pegangan

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	100 buah
Kemasan rincian:	palet
Waktu pengiriman:	15-18 hari
Syarat-syarat pembayaran:	30%TT di muka, saldo sebelum memuat
Menyediakan kemampuan:	1000PCS Per Bulan

Kontak

Detil Deskripsi produk

Bahan:	Aluminium, Kawat Baja Galvanis	Nama Produk:	kisi penyangga pegangan
Jenis:	Mesh berlubang, Etsa atau stamping	Teknik:	Berlubang
Gaya menenun:	berlubang, Punched, Punching	Bentuk lubang:	Bulat, berlian, dll, bunga prem, segi delapan
Perawatan Permukaan:	Lapisan semprot / Lukisan semprot / Lapisan fluorokarbon, Hot Dicelup Galvanis, galvanis dan fluoroc	Warna:	Semua chip warna memiliki, Putih, biru, Perak, emas
Nama Produk:	lembaran logam berlubang heksagonal, jala sdiamond yang dapat diperluas	Ketebalan:	0,5-8mm,0,3MM- 8MM
Fitur:	Resistensi korosi, tampan dan berkualitas baik, tahan lama, resistensi asam, anti-ketahanan	Lebar:	1m atau 1,22m,1,22m atau kurang
Penggunaan:	dll., dekoratif, filter oli/udara, makanan	Panjang:	2m atau 2.44m
Ukuran:	Ukuran yang disesuaikan, standar	Membentuk:	persegi, Dapat dipotong menjadi bentuk bulat atau persegi, Bentuk Bulat, oval, Hexagon
Melempar:	1.0mm-100MM, atau sebagai permintaan.	E-mail:	devin@industrialmetalmesh.com
ada apa:	+8615369013183
Menyoroti:	stainless steel perforated metal grating , safety grating grip strut , perforated metal safety grating

All Types Stainless Steel Perforated Metal Safety Grating

Product Description

Anti-slip perforated safety grating is a type of metal plate that is manufactured using a CNC punching machine. This process allows us to create stamped and formed holes, giving the grating its unique design. One notable feature of this grating is that the edges of the holes are either raised or concave, providing a non-slip surface. That's why it is also known as anti-slip perforated metal plate.

We offer a wide variety of perforated metal safety grating products to suit your needs. Our range includes Perf-O grip safety grating, grip-strut safety grating, traction thread safety grating, interlocking safety grating, various patterns of anti-slip hole safety grating, and their corresponding accessories.

Grip Strut Safety Plank Grating Advantages

√ Reducing accident rates by providing a tiny serrated surface in all directions when walking
√ Meet American Federal Standard RR-G-1602D and OSHA requirements
√ Lightweight to assemble easily
√ High strength to provide enough load capacity and longer spans
√ Professional grating devices in different applications for you
√ Right angle channel bending to enlarge the higher strength and long life
√ Open Diamond design allowing a clean surface out of fluids, mud, chips, and debris.
√ No need to maintain

1. Varied material types
2. Greatly increased safety with a special non-slip serrated edge surface
3. Maintenance-free open diamond design with the self-cleaning feature
4. Heavy load-carrying capacity with minimal deflection
5. Easy to install with low erection cost
6. Versatile in applications

Product Features
Product Name	Anti Skid Perforated Slip-Resistant safety grating walkway grip strut
Hole type	Diamond ,Perf-O ,rectangular ,Embossed , Round ,Fish scalled
Width	Max 1250mm
Length	Max 6000mm
Bend Depth	50+20mm 35+20mm 75+20mm customized
MOQ	20pcs
Special Services	Site CAD Drawing , Free Samples , Installation Guide , Solid Packages
Loading Port	Tian Jin Port or Any Chinese Port

All Types Stainless Steel Perforated Metal Safety Grating 1

Item No.	Item Description	Standard Width	Standard Channel Depth	Standard Length
1	2-Diamond Plank	4.75'' (120.65mm)	1.5'', 2'' and 2.5'' (38.1mm, 50.8mm and 63.5mm)	10' and 12' (3048mm and 3657.6mm)
2	3-Diamond Plank	7'' (120.65mm)	1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm)	10' and 12' (3048mm and 3657.6mm)
3	4-Diamond Plank	9.5'' (241.3mm)	1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm)	10' and 12' (3048mm and 3657.6mm)
4	5-Diamond Plank	11.75'' (298.45mm)	1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm)	10' and 12' (3048mm and 3657.6mm)
5	8-Diamond Plank	18.75'' (476.25mm)	1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm)	10' and 12' (3048mm and 3657.6mm)
6	10-Diamond Plank	24'' (609.6mm)	2'' and 3'' (50.8mm and 76.2mm)	10' and 12' (3048mm and 3657.6mm)
7	10-Diamond Walkway	24'' (609.6mm)	4.5'' (114.3mm)	10' and 12' (3048mm and 3657.6mm)

CAUTION:
Custom lengths, widths and channel depths are available upon request!

Diamond plank grating has a wide range of widths - from 4 3/4" (2-Diamond) to 24" (10-Diamond) for different applications. For example, standard walkway grating is usually 10-Diamond, and stair treads is available from 2-Diamond to 5-Diamond. Custom widths are welcome.

All Types Stainless Steel Perforated Metal Safety Grating 2

All Types Stainless Steel Perforated Metal Safety Grating 3

Features

Features: Anti-skid, anti-rust and anti-corrosion, uniform hole size, durable, without burs and broken holes, and lightweight design providing high strength-to-weight ratio and virtually maintenance free.
Surface pattern: Raised diamond pattern configuration in metal struts offering slip resistance in all directions of the steel grating.

Applications

Industrial walkways and platforms
Rooftop walkways and mezzanine flooring
Stair treads and ladders
Rack decking and work platforms
Signboard walkways

All Types Stainless Steel Perforated Metal Safety Grating 5

Advantages

1.Easy to maintain ,installation .2.Liquid slurry, ice ,snow in fast filtration channels .
3.High bearing capacity --High strength to weight ratio
4.Longer life than similar products
5.Light weight--easy to install and manufacturer
