High Durability Zinc Coated Tubes Galvanized Steel Round Tube Square Tube

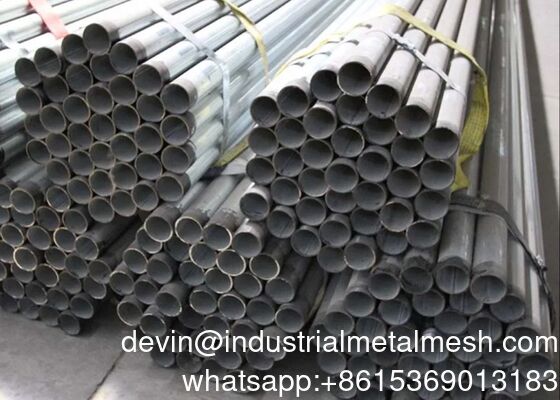

Gambar besar : High Durability Zinc Coated Tubes Galvanized Steel Round Tube Square Tube

Detail produk:

Tempat asal:	Cina
Nama merek:	qijie
Sertifikasi:	steel pipe
Nomor model:	pipa baja

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	10ton
Kemasan rincian:	dalam jumlah besar
Waktu pengiriman:	15-18 hari
Syarat-syarat pembayaran:	L/C, D/P, T/T, Western Union
Menyediakan kemampuan:	100 ton

Kontak

Detil Deskripsi produk

Bahan:

Perawatan Permukaan:

galvanis yang dicelup panas

Standar:

GB/T3091 - 2001 ,BS1387 - 1985 , DIN EN10025 ,EN10219 , JIS G3444:2004 , ASTM A53

Kelas Baja:

GB/T3091 - 2001:Q195 , Q235 BS1387 - 1985 , DIN EN10025 EN10219 :S235JR JIS G3444:2004:STK400 ASTM A

Menyoroti:

galvanized steel round tube

zinc coated square tube

high durability steel tubes

High Durability Zinc Coated Tubes Galvanized Steel Round Tube Square Tube

Hot dip galvanized tube is to make molten metal and iron matrix reaction and produce alloy layer, so that the matrix and coating of the combination of the two. Hot dip galvanizing is the first steel pipe pickling, in order to remove iron oxide on the surface of the steel pipe, pickling, through ammonium chloride or zinc chloride aqueous solution or ammonium chloride and zinc chloride mixed aqueous solution tank for cleaning, and then into the hot dip plating tank. Hot dip galvanizing has the advantages of uniform coating, strong adhesion and long service life. Complex physical and chemical reactions occur between hot dip galvanized steel tube and molten plating solution to form a tightly structured zinc-ferroalloy layer with corrosion resistance. The alloy layer is integrated with pure zinc layer and steel tube matrix, so its corrosion resistance is strong.

Product Name	Galvanized Round Pipe
Standard	GB/T 3091, ASTM A53, EN 10255, JIS G3452, DIN 2440
Material	Q235A, Q235B, Q355A, Q355B, 10#, 20#, Low carbon steel
Technique	High frequency welded, Hot dip galvanized, Electro galvanized
Side shape	Round
Outer Diameter	10mm-325mm or Customization
Thickness	1.2mm-12mm or Customization
Length	3m-12m or Customization
Surface Treatment	Hot dip galvanizing,Electro-galvanized, Passivation
Type	Welded, Seamless (optional)
Origin	China
HS Code	7304210000
Delivery Time	7-30days
After-sales Service	24 hours online
Production Capacity	20000000 Tons/Year
Price Terms	EXW, FOB, CIF, CRF, CNF or others
Loading Port	Tianjin,Qingdao,shanghai,customization
Section Shape	Round
Payment Term	TT, LC, Cash, Paypal
Application	1. Building scaffolding, water supply and drainage pipes, guardrails2. Agricultural irrigation, municipal engineering, machinery manufacturing3. Steel structure support, furniture accessories, ship supporting, etc.
Packaging	Bundle, PVC Film Wrapping, Steel Strip Binding, Standard export seaworthy package or as Request
Processing Service	Cutting, Bending, Punching, Tapping
Tolerance	±1%

2.Product Chemical Composition & Mechanical Properties :

Grade	Chemical Composition					Mechanical Properties
	C	Mn	Si	S	P	Yield	Tensile	Elongati
	C	Mn	Si	S	P	Strength Mpa	Strenth Mpa	-on %
Q195	0.06-0.12	0.25-0.50	≤0.30	≤0.045	≤0.05	≥195	315-430	≥33
Q215	0.09-0.15	0.25-0.55	≤0.30	≤0.05	≤0.045	≥215	335-450	≥27
Q235	0.12-0.20	0.30-0.67	≤0.30	≤0.045	≤0.04	≥235	375-500	≥26
Q345	≤0.20	1.00-1.60	≤0.55	≤0.04	≤0.04	≥345	470-630	≥22

3.Product standard test:

Q195 ≈	Grade B,SS330 SPHC,S185
Q215 ≈	Grade C/CS Type B,SS330 SPHC
Q235 ≈	Grade D,SS400,S235
Q345 ≈	Grade 50/345,SPFC590,E/S335

1.Black square&rectanhgular steel pipe:ERW steel tube
2.Pre-galvanized square&rectangular steel pipe: Pre-galvanized square/rectangular tube is made of hot dipped galvanized steel strip directly.
3.Hot dipped galvanizedsquare&rectangular steel pipe : Hot dipped galvanized square/rectangular tube owns thicker zinc coating than pre-galvanized square/rectangular tube. Black tubes will be dipped into zinc pool for galvanizing.
4.Electro galvanized square&rectangular steel pipe : The technology of electro galvanized square/rectangular tube is similar to hot dipped galvanized tube, but the thickness of zinc coating is less than hot dipped galvanized tube.
5.Painted square&rectangular steel pipe:Painted square/rectangular to remove the rust and clean the oil first and then paint the required color paint.
Standard:GB/T6728:2002,ASTMA500,JIS G3466,EN10210,EN10219
Steel Grade:
GB/T6728:2002 : Q195 , Q235 , Q345
ASTM A500:GR. A , GR. B, GR. C , GR. D
JIS G3466 : SS440,SS540
EN10210, EN10219: S235JR ,S275JR,S355JR, S355J2H

Square & rectangular steel tube : The size can be based on your requirement to custom.

Name	Size	Wall Thickness	Length
Name	mm	mm	m
Square tube	10x10-500x500	0.6-25.0	1-12m
Rectangular tube	20x10-200x400	0.7-13.0	1-12m

TECHNICAL PARAMETERS
Product Name	Galvanized Steel Round Pipe
Keywords	Steel Pipe
Standard	BS1139-1775, EN1039, EN10219, JIS G3444:2004, GB/T3091-2001, BS1387-1985, DIN EN10025, ASTM A53 SCH40/80/STD, BS-EN10255-2004
Material	Q235, Q345, S235JR, S275JR, STK400, STK500, S355JR, GR.B-D
Thickness	Pre Galvanized:0.6-1.5mm.
Thickness	Hot Dipped Galvanized: 1.6- 25mm.
Length	5.80 Meters Or 6 Meters As Usual Or By Customer'S Requirements
Out Diameter	Pre Galvanized:1/2''-4''(21.3-114.3mm).
Out Diameter	Hot Dipped Galvanized:1/2''-10''(21.3Mm-273.1mm).
Zinc Coating	Pre Galvanized:5GSM-40GSM
Zinc Coating	Hot Dipped Galvanized 35GSM-200GSM
Technique	Electronic Resistance Welded (ERW)
Surface Finish	Pre-Galvanized, Hot Dipped Galvanized, Electro Galvanized, Black, Painted, Threaded, Engraved, Socket.
Application	Hot Dipped Galvanized Steel Pipe Is Widely Used In Construction, Structure, Accessorize,Construction, Machinery Parts,Fluid Transportation,The Stress Parts Of The AutomobileTractor Parts And So On.
Packing	1.Big OD:In Bulk
	2.Small OD:Packed By Steel Strips
	3.Woven Cloth With 7Slats
	4.According To The Requirements Of Customers

SIZE INTRODUCTION
Out Diameter	Wall Thickness	Length
Inch	Mm	M
1/2"	0.5-2.75	1-12M (Customized)
3/4"	0.5-2.75	1-12M (Customized)
1"	0.5-3.75	1-12M (Customized)
1-1/4"	0.5-5.0	1-12M (Customized)
1-1/2"	0.5-5.0+	1-12M (Customized)
2"	0.5-5.0+	1-12M (Customized)
2-1/2"	0.8-5.0+	1-12M (Customized)
3"	0.8-5.0+	1-12M (Customized)
4"	0.8-4.0	1-12M (Customized)
5"	1.1-4.75	1-12M (Customized)
6"	1.1-6.0+	1-12M (Customized)
8"	1.2-6.5+	1-12M (Customized)
10"	2.75-5.0+	1-12M (Customized)

High Durability Zinc Coated Tubes Galvanized Steel Round Tube Square Tube 0

High Durability Zinc Coated Tubes Galvanized Steel Round Tube Square Tube 1
