High Strength and Cheaper Price Diamonds Safety Grip Strut Stair Treads Grating

Gambar besar : High Strength and Cheaper Price Diamonds Safety Grip Strut Stair Treads Grating

Detail produk:

Tempat asal:	Hebei, Cina
Nama merek:	QIJIE
Sertifikasi:	iso
Nomor model:	kisi penyangga pegangan

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	100 pcs
Kemasan rincian:	Palet
Waktu pengiriman:	15-18Hari
Syarat-syarat pembayaran:	30%TT di muka, saldo sebelum memuat
Menyediakan kemampuan:	1000 pcs per bulan

Kontak

Detil Deskripsi produk

Bahan:	Aluminium, Kawat Baja Galvanis	Nama Produk:	kisi penyangga pegangan
Jenis:	Mesh berlubang, Etsa atau stamping	Teknik:	berlubang
Gaya menenun:	berlubang, Punched, Punching	Bentuk lubang:	Bulat, berlian, dll, bunga prem, segi delapan
Perawatan permukaan:	Lapisan semprot / Lukisan semprot / Lapisan fluorokarbon, Hot Dicelup Galvanis, galvanis dan fluoroc	Warna:	Semua chip warna memiliki, Putih, biru, Perak, emas
Nama Produk:	lembaran logam berlubang heksagonal, jala sdiamond yang dapat diperluas	Ketebalan:	0,5-8mm,0,3MM- 8MM
Fitur:	Resistensi korosi, tampan dan berkualitas baik, tahan lama, resistensi asam, anti-ketahanan	Lebar:	1m atau 1,22m,1,22m atau kurang
Penggunaan:	dll., dekoratif, filter oli/udara, makanan	Panjang:	2m atau 2.44m
Ukuran:	Ukuran yang disesuaikan, standar	Membentuk:	persegi, Dapat dipotong menjadi bentuk bulat atau persegi, Bentuk Bulat, oval, Hexagon
Melempar:	1.0mm-100MM, atau sebagai permintaan.	E-mail:	devin@industrialmetalmesh.com
ada apa:	+8615369013183
Menyoroti:	diamond safety grip strut grating , high strength stair treads , cheaper price grip strut grating

High Strength and Cheaper Price Diamonds Safety Grip Strut Stair Treads Grating

stair tread steel gratings, also called grating steps, are made of low carbon steel or stainless steel. It is one of the most
widely used and popular types of steel gratings. With the features of high strength, high bearing capacity, wear resistance,
resistance to extreme temperature wind and rain, non-slip, anti-corrosion, beautiful and easy to install and remove extend the
lifespan, stair tread steel grating is widely used as different types of steel ladders in the factory, school, park, stadium,
civil and commercial buildings.

Grip Strut Safety Plank Grating Advantages

√ Reducing accident rates by providing a tiny serrated surface in all directions when walking
√ Meet American Federal Standard RR-G-1602D and OSHA requirements
√ Lightweight to assemble easily
√ High strength to provide enough load capacity and longer spans
√ Professional grating devices in different applications for you
√ Right angle channel bending to enlarge the higher strength and long life
√ Open Diamond design allowing a clean surface out of fluids, mud, chips, and debris.
√ No need to maintain

Grip struct perforated steel grating
Diamond Grip Strut Safety Plank Grating provides a maximum safety and slip resistant option against mud, ice, snow, grease, oil or detergents on plank, walkways, catwalks, stairs, etc. The plank grating is usually made of lightweight Low carbon steel Q235, pre-galvanized steel plate, Stainless steel 304 or 316, go througn cutting the right size easily, punching the serrated diamond hole, and bending into depth as your required.

The grip strut plank grating includes regular and heavy duty types, which can be 10' or 12' lengths and 4.75'' to 24'', diamonds
of ,channel heights of , metal wall thick of 12 & 14 ga. Pre-Galvanized and Plain Steel, 10 & 12 ga. 5052-H32 Aluminum, 16 ga.Stainless Steel 304 and 316 ,Widths 4-3/4'', 7'', 9-1/2'', 11-3/4'', 18-3/4'', 24'' , Heights 1-1/2'', 2'', 2-1/2'',3''Lengths,or cut to size, with necessary accessories of splice plates, anchor plates, diamond washer bolt kits.

Notice: The channel depth and metal thick are the key of high load capacity.

Grip struct perforated steel grating is a one-piece metal plank grating manufactured from a single sheet with formed side channels. The perforated buttons provide a walking surface that is slip resistant in all directions. Open area of approximately 35% allow fluids, ice, and mud to easily flow through the grating. The walking surface of Grip has resiliency that cushions footfalls, thus decreasing worker fatigue and increasing plant productivity. Benefits of Perf-O Grip include:
Slip-resistant walking surface
Easy to fabricate and install
Safe, versatile, and durable
Low maintenance

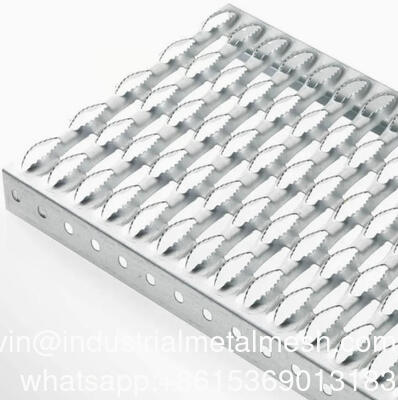

High Strength and Cheaper Price Diamonds Safety Grip Strut Stair Treads Grating 1

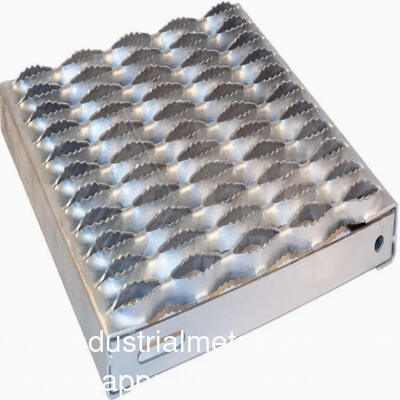

High Strength and Cheaper Price Diamonds Safety Grip Strut Stair Treads Grating 2

Item No.	Item Description	Standard Width	Standard Channel Depth	Standard Length
1	2-Diamond Plank	4.75'' (120.65mm)	1.5'', 2'' and 2.5'' (38.1mm, 50.8mm and 63.5mm)	10' and 12' (3048mm and 3657.6mm)
2	3-Diamond Plank	7'' (120.65mm)	1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm)	10' and 12' (3048mm and 3657.6mm)
3	4-Diamond Plank	9.5'' (241.3mm)	1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm)	10' and 12' (3048mm and 3657.6mm)
4	5-Diamond Plank	11.75'' (298.45mm)	1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm)	10' and 12' (3048mm and 3657.6mm)
5	8-Diamond Plank	18.75'' (476.25mm)	1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm)	10' and 12' (3048mm and 3657.6mm)
6	10-Diamond Plank	24'' (609.6mm)	2'' and 3'' (50.8mm and 76.2mm)	10' and 12' (3048mm and 3657.6mm)
7	10-Diamond Walkway	24'' (609.6mm)	4.5'' (114.3mm)	10' and 12' (3048mm and 3657.6mm)
