SS400 Perforated Carbon Steel Sheet For Screening Plate

Gambar besar : SS400 Perforated Carbon Steel Sheet For Screening Plate

Detail produk:

Tempat asal:	Hebei, Tiongkok
Nama merek:	XMESH
Sertifikasi:	SGS
Nomor model:	QJ-813

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	200 pcs
Kemasan rincian:	dilepas dikemas atau dipalletisasi
Waktu pengiriman:	15-25 hari
Syarat-syarat pembayaran:	TT, LC,
Menyediakan kemampuan:	1000/pcs

Kontak

Detil Deskripsi produk

Bahan:	Pelat baja galvanis, pelat baja tahan karat	Ketebalan:	1,8 - 6,5 mm
Mesh:	lubang 3 - 15 mm	Permukaan akhir:	Alam
Bentuk lubang:	Slot	Ukuran:	1,0 x 2,0 m, 1,2 x 2,4 m
E-mail:	devin@industrialmetalmesh.com	ada apa:	+8615369013183
Menyoroti:	SS400 perforated carbon steel sheet , perforated metal mesh screening plate , carbon steel perforated sheet with warranty

SS400 Perforated Carbon Steel Sheet For Screening Plate

Product descriptions

Perforated Metal is fabricated from the special alloys, stainless steel or galvanized steel. The slotted pattern includes extended holes with circular or square ends. These are produced in the side staggered or straight line pattern in the plain metal. The holes are punched through slotting that varies in length and width. It is offered in the several gauges, hole sizes, patterns and materials. The shape of hole is determined by the die shape such as for perforation in a slot hole pattern, the die is slot shaped.

The slotted hole is also known as oblong hole, perforated metal with oblong holes are the suitable solution when filtration or separation of liquids and solids is needed. These are commonly used in the wine and food industries.

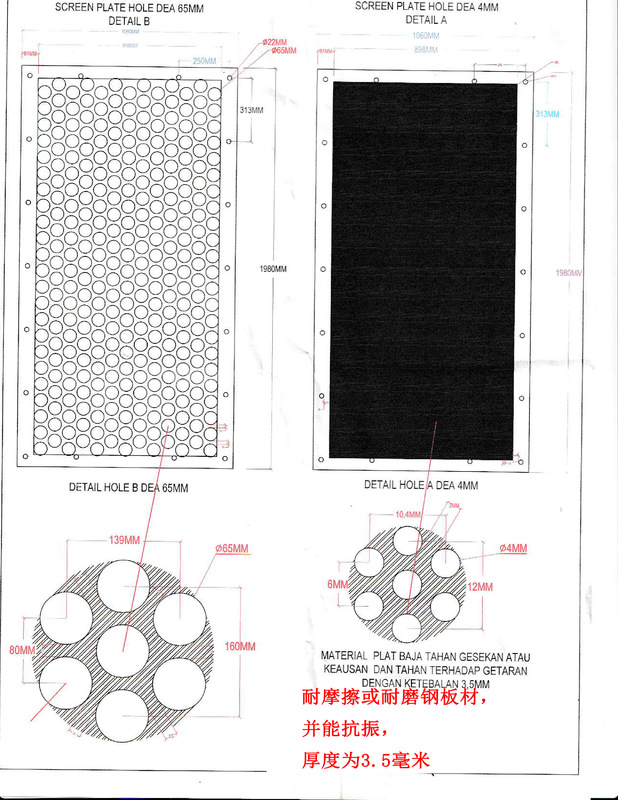

SS400 Perforated Carbon Steel Sheet For Screening Plate 0

Applications of Slotted Perforated Metal Sheet

1. Safety and security
2. Pressure equalization or control
3. Ventilation of air, light, sound and gases
4. Diffusers, Strainers and Grills
5. Guards

Our services include:
1: Broad range of metals and alloys available including special wire options such as nickel alloys, pure nickel, etc.
2: Further services include cleaning, cutting and shaping.

Slotted Hole Perforated Metal Sheet Plate Technical Specification:

Perforation	centres	Open Area	Width direction	Length direction	Perforation	centres	Open Area	Width direction	Length direction
0.020 inch	–	20	.530	.465	3/16 inch	5/16 inch	33	.400	.334
1/16 inch	1/8 inch	23	.500	.435	¼ inch	5/16 inch	58	.200	.147
5/64 inch	7/64 inch	46	.286	.225	¼ inch	3/8 inch	40	.333	.270
5/64 inch	1/8 inch	36	.375	.310	¼ inch	7/16 inch	30	.428	.363
3/32 inch	5/32 inch	32	.400	.334	¼ inch	½ inch	23	.500	.435
3/32 inch	3/16 inch	23	.500	.435	3/8 inch	1/2 inch	51	.250	.192
1/10 inch	5/32 inch	36	.360	.296	3/8 inch	9/16 inch	40	.333	.270
1/8 inch	3/16 inch	40	.333	.270	3/8 inch	5/8 inch	33	.400	.334
1/8 inch	7/32 inch	29	.428	.363	7/16 inch	5/8 inch	45	.300	.239
1/8 inch	¼ inch	23	.500	.435	1/2 inch	11/16 inch	47	.273	.214
5/32 inch	7/32 inch	46	.288	.225	9/16 inch	¾ inch	51	.250	.192
5/32 inch	¼ inch	36	.375	.310	5/8 inch	13/16 inch	53	.231	.175
3/16 inch	1/4 inch	51	.250	.192	3/4 inch	1 inch	51	.250	.192

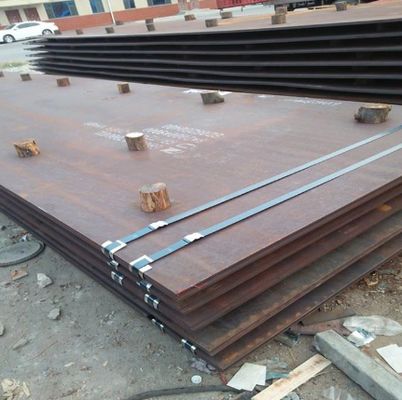

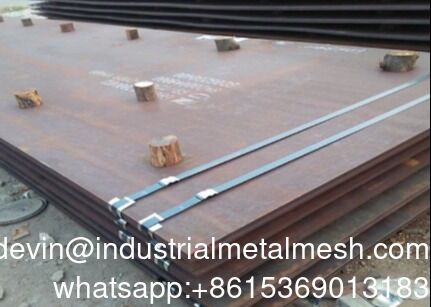

SS400 Perforated Carbon Steel Sheet For Screening Plate 2

slot hole perforated hole sheets-S0003
