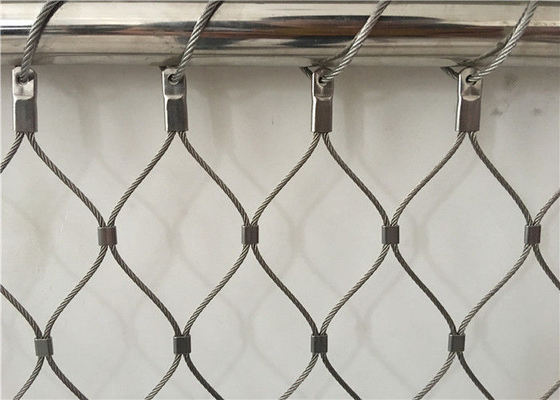

Stainless Steel Ferrule Rope Mesh – Aesthetic, Rigid, Flexible & Durable

Wire rope ferrule mesh, also known as cable ferrule mesh or stainless steel ferrule rope mesh, is made of 304, 304L, 316 or 316L stainless steel materials. It combines both flexibility and stability and has a high strength-to-weight ratio, which fully reflects the super-toughness and plasticity of austenitic stainless steel.

As a new product in architectural decoration and protection, wire rope ferrule mesh adds a new fashionable element to modern architectural decoration and is increasingly favored by designers and clients around the world.

We have rich production and design experience, and provide various diameter options and flexible mesh aperture size solutions. Our products are widely used in public balustrades, zoo animal enclosures, bird netting, safety fences, green planting systems, etc.

Each of our products undergoes stringent inspections before leaving the factory to ensure their compliance with AISI 304, 316, 316L, and ISO/TS 15510:2003 standards.

When the application requires high resistance to chloride ion corrosion and heat, 316 stainless steel is preferred. That's because 316 stainless steel contains the element molybdenum (Mo), which forms a denser and more stable passive film on the metal surface, thus effectively enhancing the stainless steel's resistance to chloride ion corrosion.

Structure

• Wire rope structure:7 × 7, 7 × 19
• Opening angle:20°, 30°, 60°, 70° and 75° are set as standard opening, and optimal stretched at 60°.
• Ferrule type:both ferrule and opened ferrule available
• M:mesh aperture
• D:diameter

• Easy assembly and durability.The wire ropes are securely fixed with ferrules, making the assembly process become simple. Stainless steel material offers high load-bearing capacity,relatively low weight, and high tensile strength.

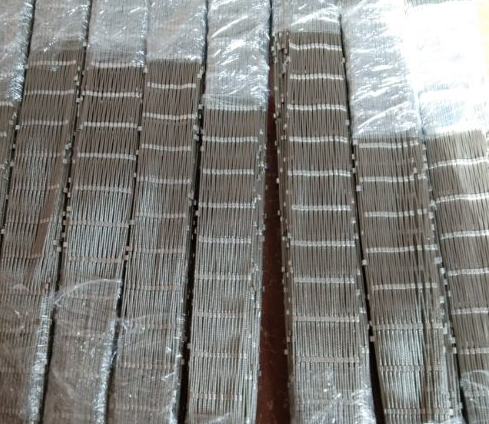

• Flexible structure and easy packaging & transportation.It can be easily bent and folded without compromising its strength, safety, or other characteristics. Besides, it can be flexibly installed and rolled into small packages for transportation.
• Excellent corrosion resistance & weather resistance.We offer stainless steel ferrule rope mesh made of 304, 304L, 316, and 316L materials. Their exceptional weather resistance makes them an ideal choice for outdoor applications.
• Unique design.Each mesh can be designed and manufactured according to your specific project requirements. Rope diameter, opening size, and mesh aperture size can be customized, allowing for various design possibilities for designers.

Specifications
