Epoxy Coated FULL THREAD BAR 32MM PSB930

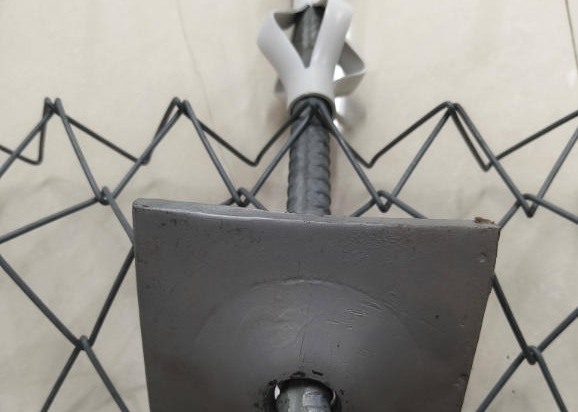

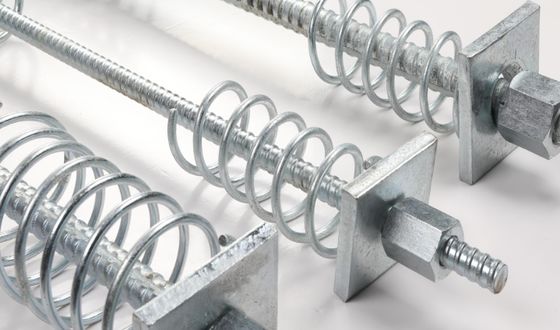

Gambar besar : Epoxy Coated FULL THREAD BAR 32MM PSB930

Detail produk:

Tempat asal:	CINA
Nama merek:	Qijie
Sertifikasi:	Anchor Plate
Nomor model:	Pelat Jangkar

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	150 pcs
Harga:	Discuss
Kemasan rincian:	karton kertas
Waktu pengiriman:	15-18Hari
Syarat-syarat pembayaran:	L/c, t/t
Menyediakan kemampuan:	150 pcs

Kontak

Detil Deskripsi produk

Bahan:

Aplikasi:

Pelat Jangkar untuk Lereng

Teknik:

Berlubang

Menyoroti:

epoxy coated full thread bar

32mm psb930 threaded bar

metal wire mesh threaded rod

epoxy coated Threadbar Anchor System

1 Specification:

Threadbars, which ensure ease of coupling and stressing. The wide range of capacities (up to 4500 kN) enable threadbar anchors to be used for many applications.

Typical section lengths range from 6 to 12 meters. Where multiple short sections are required, the Anchor System may be more suitable.

Steel Grade	Yield Strength ReL(RP0.2) MPa	Tensile Strength Rm, MPa	Elongation at failure A/%	Uniform Elongation Agt/%	Strssel Relaxation
Steel Grade	Yield Strength ReL(RP0.2) MPa	Tensile Strength Rm, MPa	Elongation at failure A/%	Uniform Elongation Agt/%	Original Stress	Relaxation Rate Afteer 1000h r/%
PSB785	≥785	≥980	≥7	≥3.5	0.8R	≤3
PSB830	≥830	≥1030	≥6
PSB930	≥930	≥1080	≥6
PSB1080	≥1080	≥1230	≥6
PSB500	≥500	≥≥630	≥10	≥2.5

Epoxy Coated FULL THREAD BAR 32MM PSB930 0

1)Quickly installed, easily grouted
Rock bolt is in many ways a typical combination mechanical bolt, installed as a temporary rock support and later grouted to become permanent. But there are important differences. It’s quick and easy to install, simple to grout even with varying consistency and the polypropylene sleeve seals the bolt against corrosion.

Epoxy Coated FULL THREAD BAR 32MM PSB930 1

Unique corrosion protection
The rock bolt surface can be hot dip galvanized with zinc thickness ≥80um.

Epoxy coated threaded bars , thickness ≥80um or higher 220um, 280um.

Full accessories are available: .

Bearing plates with angle compensation, different finishes, architectural features.
Borehole spacers : lantern or skid
Tubes for borehole grouting (bottom up)
Coupler forks for suspending sections within the borehole

Epoxy Coated FULL THREAD BAR 32MM PSB930 3

Epoxy Coated FULL THREAD BAR 32MM PSB930 4

Epoxy Coated FULL THREAD BAR 32MM PSB930 5

Epoxy Coated FULL THREAD BAR 32MM PSB930 6

Application

geotechnical, soil nailling,rock bolts,ground anchors,form work,reinforcement,post-tension system,bridge ,micro piles,mining and tunneling ect.
